Pre-Owned Inventory
View Specials

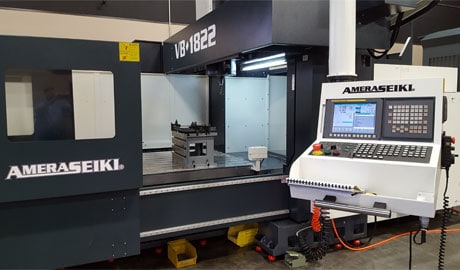

Amera-Seiki VB-1822

Amera-Seiki VB-1822 Vertical Bridge Mill w/auto right angle head

Showroom demo. Gorgeous machine with lots of great features. We'll make you a deal on this. Come see it running!
Watch a video of this machine going through its motions!

  • 59"x 78" Table
  • XYZ Travels…86.6"x 70.9"x 31.5"
  • 6,000 RPM
  • 35 HP w/2 speed ZF Gearbox
  • 300 PSI Coolant thru Spindle
  • (32) V/H ATC (changes both vertical and horizontal)
  • 5 degree Right Angle Head (CT-50)
  • Fully Automatic Head Changer
  • CT-50 Spindle
  • 24,000 lbs. Table Load Capacity
  • Fanuc 0i-MD Control w/10.4" LCD Screen

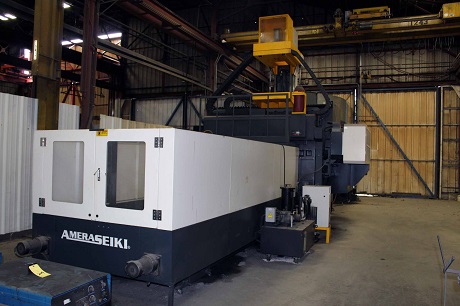

Get a great price on a demo model VB-3 bridge mill!

This VB-3 vertical bridge mill has the following specs:

  • X, Y, Z Travels: 126”, 79”, 35.43”
  • Distance between columns: 81”
  • Table size: 126” X 64.96”
  • Max load on table: 20,000 Lbs. (Stabilized)
  • Fanuc 0iMD Control with Manual Guide i and 10.4” color screen
  • Spindle: CAT 50, 6,000 RPM, 30 HP
  • Coolant Through Spindle (CTS), upgraded to 20 Bar (290 PSI)
  • ZF two-speed gearbox
  • Arm-type ATC w/ 32 tool capacity
  • Renishaw part probe and tool probe
  • Automatic door
  • Full enclosure guarding
  • Chip conveyor

 MSRP on this machine: $402,500

Call today or email us now!


Mitsubishi ZG1000 CNC Gear Grinder

Loaded, like new condition.  Has less than six months total use.

Specs:

Control – Fanuc 16MA *May need some reprogramming as part of the program software is missing.

Workpiece:
               Max. Dia. – 1000mm
               Max. Diametral Pirch/module – 1.41 DP/18 M
               Max. swiveling angle - ±45°

Center Distance from wheel spindle to center of table:
          Max. – 700mm
          Min. – 100mm

Max. radial travel – 600mm

Height from work table to center of wheel spindle:
          Max. – 800mm
          Min. – 150mm

Max. axial travel between worktable and tailstock – 700mm

Max. worktable speed – 33 RPM (rapid), 10 RPM (feed)

Please contact us for lots more information about this machine.

Base price on this machine new was $1.4M plus options.

Available, FOB Houston, TX: $94,900


Specials
View Pre-Owned Inventory

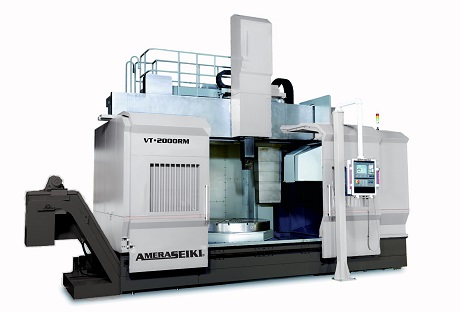

Amera-Seiki VT-2000RM VTL

Amera-Seiki VT-2000RM VTL w/C-axis live tooling

Super heavy duty Vertical Turning Lathe!  Great value!

  • All Box Ways
  • 78.7" (4) jaw manual chuck
  • 82.7" Max Swing Diameter
  • 78.7" Max Turn Diameter
  • 63" Max Cut Height
  • 100 HP w/3 speed gear box
  • 29,480 Ft Lbs. Torque
  • 300 RPM
  • 50 HP Live Tooling w/Full C-axis
  • Scales on all axis
  • 1,000 PSI Coolant thru Spindle
  • (24) ATC
  • 44,000 Max Table Load
  • Fanuc 31i control w/10.4" Screen
  • Renishaw Tool Probe

MSRP: $899,500



AH-500 Horizontal Machining Center

AH-500 Specs

  • Control: FANUC Oi-MF, 10.4” display, Manual Guide i
  • Travel, X/Y/Z: 28.3”, 25.6”, 25.6”
  • Table: 19.7” x 19.7”, 1763 lbs max load (uniform)
  • Max workpiece size, DxH: 27.56” x 31.5”
  • Min indexing angle: 0.001 degree
  • Spindle: 33/40 HP, BT-50, 10,000 RPM
  • Dist. spindle nose to table surface: 5.9” ~ 31.5”
  • Auto tool changer: 60 tools, cam type
  • Machine size/weight: 164” x 261” x 123”, 28,660 lbs

Includes: spindle air blast, coolant unit, heat exchanger for electrical cabinet, 3-axis auto lube system, dual screw-type chip conveyor, ball screw and spindle oil cooler, ceiling flush coolant system, full enclosure, oil skimmer, foot pedal, lift-up chip conveyor.

Optional features included: CTS prepped with rotary joint, Coolant Through Spindle (30 bar, 450 PSI), data server + 2G card, FANUC AICC II function.

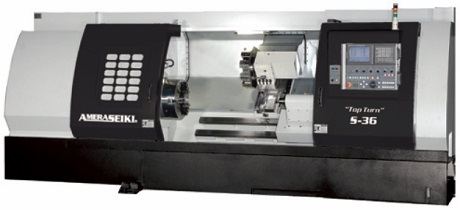

S36L CNC Lathe

Two left in stock!  Call now!

S-36L CNC Lathe Specs

  • Control: FANUC Oi-TF, 10.4” screen
  • Swing over bed: 30.7”
  • Max turning dia.: 21.6”
  • Max turning length: 47.2”
  • Distance between ctrs: 49.2”
  • Chuck: 18”, 3-jaw hydraulic
  • Spindle: 1000 RPM, 30/35 HP, 6.5” bore, A2-11 nose, 4.62” bar capacity
  • 3-speed gearbox
  • Turret: 10 tools, servo style
  • Z-axis: Box ways, 47.24” travel
  • Tailstock: hydraulic, 4.33” quill, 3.9” travel, MT5 taper

Includes: hard jaws, soft jaws, foot pedal, tool kit, auto lube system, coolant system, full enclosure splash guard, front door interlock, (2) face cutting holder, (4) boring tool holder, (6) boring bar sleeves from 3/8” to 1 ¼”, chip conveyor and cart, high pressure coolant pump (3 bar), MPG handwheel.
